Minco CT425可配置PID溫度控制器

發布時間：2025-12-12 09:08:12 瀏覽：254

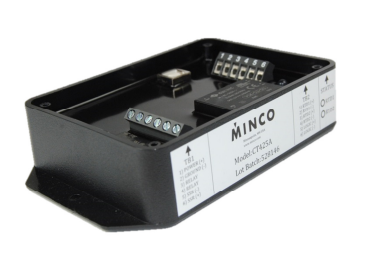

　 Minco CT425可配置PID溫度控制器

　Minco CT425是一款多功能、可配置的 PID 溫度控制器，主要特點如下：

CT425 Temperature Controller
Performance	Measurement Range	-70°C to 6502C (-94°C to 1202°F),F30.25°C full-range accuracy at 25°C

	Input Power	Model CT425A:120VAC,50-60Hz Model CT425B:10.5-60VDC Model CT425C:240VAC,50-60Hz


	Sensor Inputs (RTD)	100% or 1000% Platinum,0.00385%/%/°CTCR, 2-wire connection, Open and shorted sensor detection


	Connections	5mm spacing terminal block
Environment	Output Ratings	Output	Max Voltage	Current (25C)	Current (55C)
		120VAC Solid State (CT425A)	120VAC	6A	5A
		DC Solid State (CT425B)	60VDC	15A	11A
		240VAC Solid State (CT425C)	240VAC	3A	2.5A
		Mechanical Relay	250VAC/30VDC	10A resistive
		Logic Voltage	4.4V,+/- 0.1V output	26mA,+/- 3mA
	Temperature Range	-20°C to 55°C,90% humidity,non-condensing
Mechanical	Dimensions	5.46” x 3.34” x 1.22”
	Weight	350 grams (12.3 ounces)
	Enclosure	UL 94V-0 ABS plastic with epoxy potting

　　Ordering Information

　　To configure your temperature controller,select from the

　　options listed below to determine the complete part number.

CT425	Power Supply
CT425A	120VAC power,120 VAC solid state relay
CT425B	10.5–60VDC power,DC solid state relay
CT425C	240VAC power,240 VAC solid state relay
Additional Option:-BT	Bluetooth Communication
Blank for none	Bluetooth Communication
CT425A,CT425A-BT = Sample part number

Minco是專注于為嚴苛應用提供溫度傳感與控制、熱加熱、柔性電路及集成解決方案。其產品廣泛應用于醫療、航空航天、半導體、能源等多個行業。深圳市立維創展科技有限公司優勢分銷Minco產品，歡迎咨詢了解。
